Electronic boiler controller SBR-4

Electronic boiler controller SBR-4
  • Compact design.
  • Display 4 parameters of the process.
  • Easy installation and setup.
  • LED display 25 mm.
  • Good visibility of parameters.
Kataloški broj »

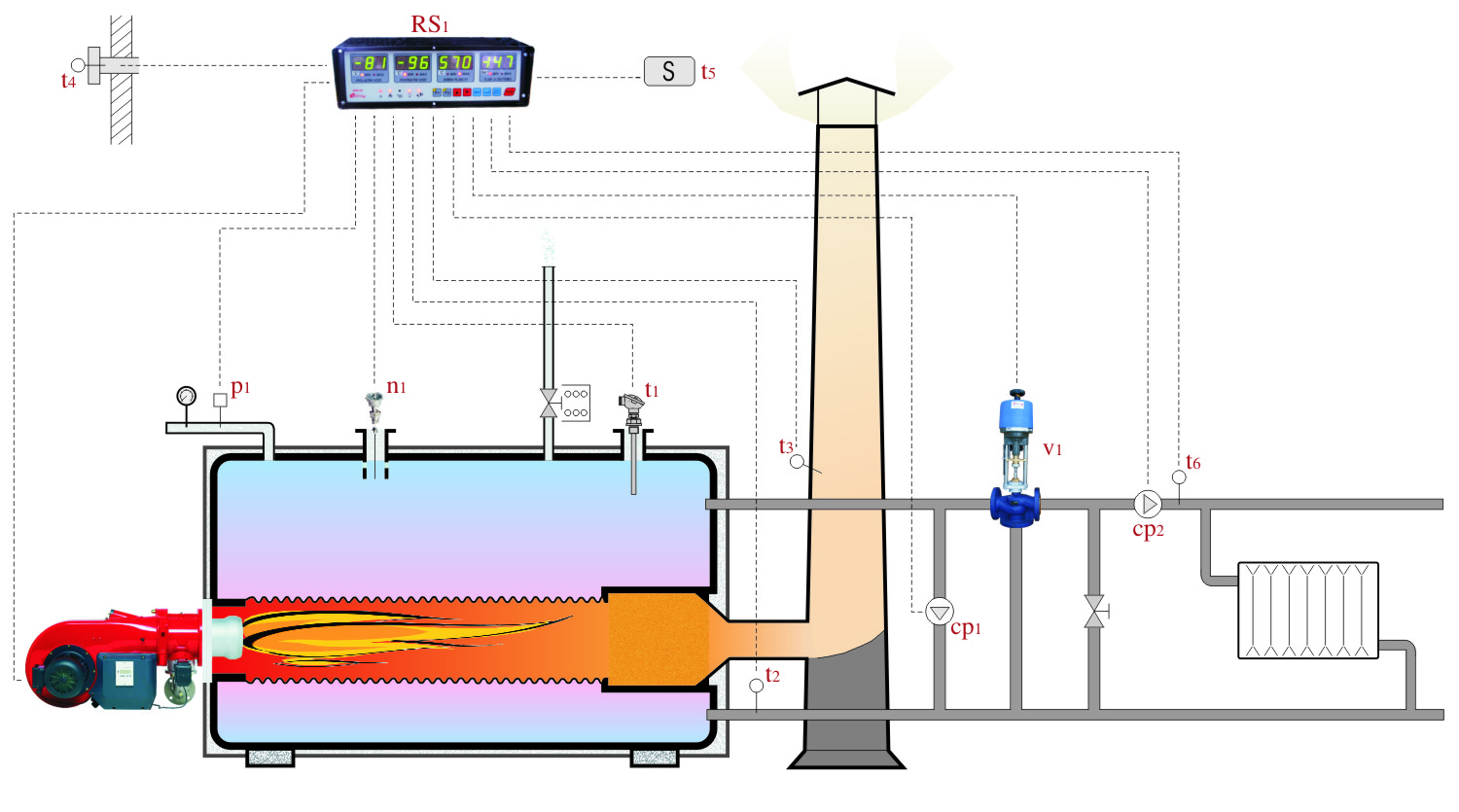

Electronic boiler controller SBR-4 is designed to display signalization and controling parameters of the boiler. Control parameters: flow, return flow, flue gas, the pressure in the boiler. Flow is controlling two-stage burner. All sizes have a software adjustable alarm MIN and MAX. Control parameters is simply adjusted on foil keyboard on the front of the device. The device is a compact design ie freestanding, for it is not necessary an additional cabinet for electrical installation. Display parameters on 4 displays 3 digits 25mm high. The large display allows monitoring of parameters from a distance. Measurement of parameters is carried out over 4 software configurable analogue inputs (current (0-20mA / 4-20mA) / PT100). Device has 4 relay outputs (ON / OFF temperature control of a small flame, the ON / OFF temperature control of a large fire, sound and light alarm).


Dokumentacija:
Potrebna je registracija za uvid u dokumentaciju

Tablica tehničkih karakteristika omogučava kreiranje kataloškog broja a s time i izračun cijene.
